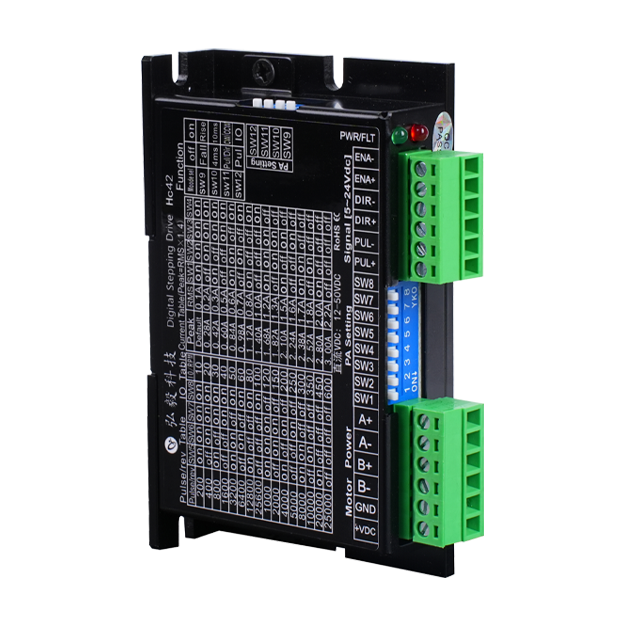

静止时电流自动减半
全新32位DSP数字技术
电流设定范围为0.1-3.0A
信号接口电平5-24V兼容
细分设定范围为200-51200
上电自动匹配电机参数功能
可驱动4,6,8线两相步进电机
具有过压、欠压、过流等保护功能
内置微步细分技术，细分中还有细分
脉冲，方向，使能信号光隔离差分输入
供电电压直流12-32Vdc,推荐直流24Vdc
变频和变电流技术，发热小，振动小，噪音低
匹配电机20,28,35,39,42,57基座系列步进电机
脉冲响应频率最高可达500KHz(出厂默认200KHz)

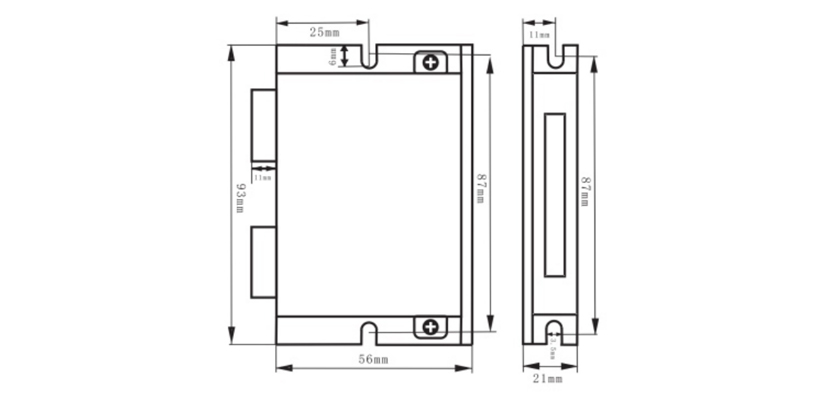

机械安装图
电气参数
| 电气参数 | 最小值 | 典型值 | 最大值 | 单位 |
| 连续输出电流 | 0.1 | - | 3.0 | A |
| 输入电源电压(直流 ) | 12 | 24 | 32 | Vdc |
| 逻辑输入电流 | 6 | 10 | 16 | mA |
| 逻辑输入电压 | 5 | 5 | 24 | Vdc |
| 脉冲频率 | 0 | - | 200 | KHZ |
| 脉冲高电平宽度 | 1.5 | - | - | US |
| 绝缘电阻 | 100 | - | - | MΩ |

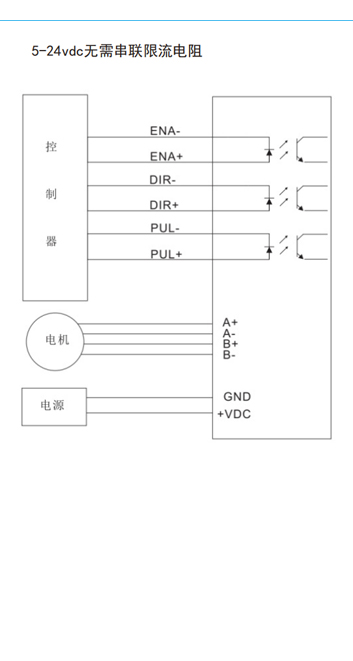

产品接线图
| 工作电流设定 | |||||
| Peak | RMS | SW1 | SW2 | SW3 | SW4 |
| Default[0.1] | on | on | on | on | |
| 0.28A | 0.2A | off | on | on | on |
| 0.42A | 0.3A | on | off | on | on |
| 0.60A | 0.5A | off | off | on | on |
| 0.84A | 0.6A | on | on | off | on |
| 0.98A | 0.7A | off | on | off | on |
| 1.12A | 0.8A | on | off | off | on |
| 1.40A | 1.0A | off | off | off | on |
| 1.68A | 1.2A | on | on | on | off |
| 1.82A | 1.3A | off | on | on | off |
| 2.10A | 1.5A | on | off | on | off |
| 2.24A | 1.6A | off | off | on | off |
| 2.38A | 1.7A | on | on | off | off |
| 2.52A | 1.8A | off | on | off | off |
| 2.80A | 2.0A | on | off | off | off |
| 3.00A | 2.2A | off | off | off | off |
| 电机细分设置 | ||||
| Pulse/rew | SW5 | SW6 | SW7 | SW8 |
| Default[200] | on | on | on | on |
| 400 | off | on | on | on |
| 800 | on | off | on | on |
| 1600 | off | off | on | on |
| 3200 | on | on | off | on |
| 3600 | off | on | off | on |
| 6400 | on | off | off | on |
| 12800 | off | off | off | on |
| 1000 | on | on | on | off |
| 2000 | off | on | on | off |
| 4000 | on | off | on | off |
| 5000 | off | off | on | off |
| 7200 | on | on | off | off |
| 8000 | off | on | off | off |
| 10000 | on | off | off | off |
| 20000 | off | off | off | off |
