单电源输入，电压范围：交流220Vac
驱动电流从峰值1.2A/相到9.8A/相分16档可调
16档细分配置，最高分辨率60000步/转；细分配置小于等于2000步/转时采用微细分 控制方式
最高响应频率可达200KHz
相位记忆功能：断电时能自动记忆电机转子位置
保护功能：过热保护/过流保护、相间短路保护、过压保护
自动半流：输入脉冲脉冲停止超过100ms时，电流自动减半，减少电机发热
全隔离：信号输入输出隔离；强弱电隔离(pwm控制信号及电流采样均隔离)
5V-24V信号输入兼容设计
控制模式可选：脉冲/方向模式；或者双脉冲输入模式
自测试功能：无需外界脉冲信号即可驱动电机以30转/分钟的速度转动
采用工业级芯片设计，运行环境温度：-25°～+60°(0°以下不结冰)
采用矢量控制及微细分控制技术，在运行平稳性、噪音、震动、发热等方面较传统驱 动器均有较大的提升

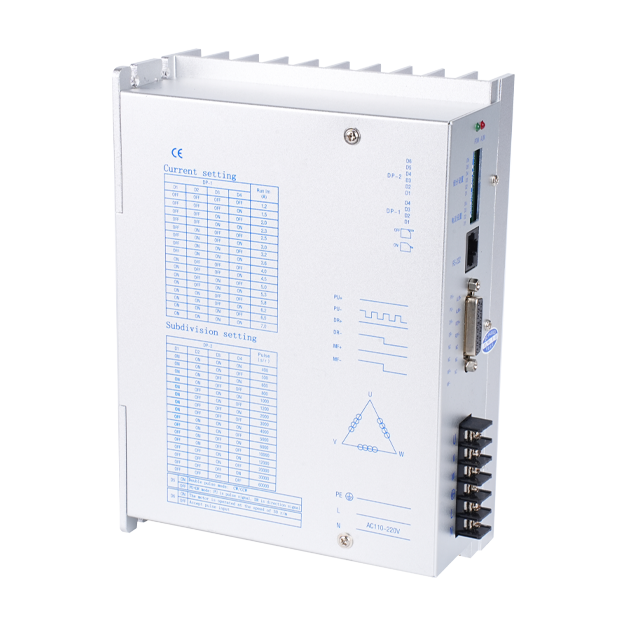

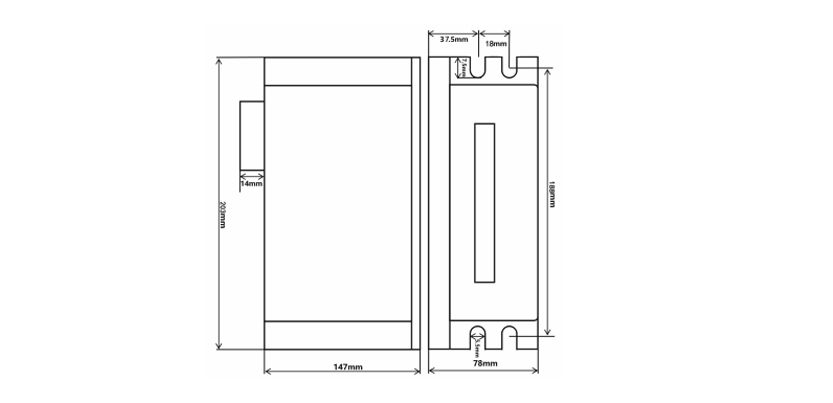

机械安装图
电气参数
| 电气参数 | 最小值 | 典型值 | 最大值 | 单位 |
| 连续输出电流 | 1.2 | - | 9.8 | A |
| 电源电压(交流 ) | 165 | 220 | 253 | Vac |
| 逻辑输入电流 | 6 | 10 | 16 | mA |
| 逻辑输入电压 | 5 | 5 | 24 | Vdc |
| 脉冲频率 | 0 | - | 200 | KHZ |
| 脉冲高电平宽度 | 1.5 | - | - | US |
| 绝缘电阻 | 100 | - | - | MΩ |
产品接线图
| 工作电流设定 | |||||
| Peak | RMS | SW1 | SW2 | SW3 | SW4 |
| Default[RMS=1.2A] | off | off | off | off | |
| 2.10A | 1.50A | off | off | off | on |
| 2.80A | 2.00A | off | off | on | off |
| 3.22A | 2.30A | off | off | on | on |
| 3.50A | 2.50A | off | on | off | off |
| 4.20A | 3.00A | off | on | off | on |
| 4.48A | 3.20A | off | on | on | off |
| 5.04A | 3.60A | off | on | on | on |
| 5.60A | 4.00A | on | off | off | off |
| 6.30A | 4.50A | on | off | off | on |
| 7.00A | 5.00A | on | off | on | off |
| 7.42A | 5.30A | on | off | on | on |
| 8.12A | 5.80A | on | on | off | off |
| 8.68A | 6.20A | on | on | off | on |
| 9.10A | 6.50A | on | on | on | off |
| 9.80A | 7.00A | on | on | on | on |
| 电机细分设置 | ||||
| Pulse/rew | SW5 | SW6 | SW7 | SW8 |
| Default[400] | on | on | on | on |
| 500 | off | on | on | on |
| 600 | on | off | on | on |
| 800 | off | off | on | on |
| 1000 | on | on | off | on |
| 1200 | off | on | off | on |
| 2000 | on | off | off | on |
| 3000 | off | off | off | on |
| 4000 | on | on | on | off |
| 5000 | off | on | on | off |
| 6000 | on | off | on | off |
| 10000 | off | off | on | off |
| 8000 | on | on | off | off |
| 20000 | off | on | off | off |
| 30000 | on | off | off | off |
| 60000 | off | off | off | off |
| 功能设置 | ||
| SW9:Pulse Mode,off=PUL/DIR;on=CW/CCW | ||
| SW10:Smoothing Sel,off=10ms(高响应);on=20ms(低振动) |
